Sản phẩm
|
Bo mạch chủ
|
|
Tên Hãng
|
ASUS
|
|
Model
|

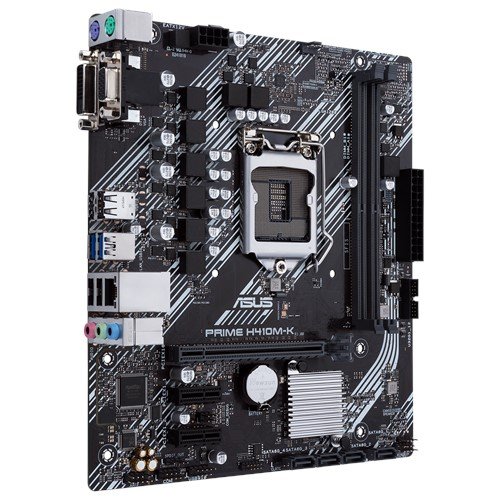

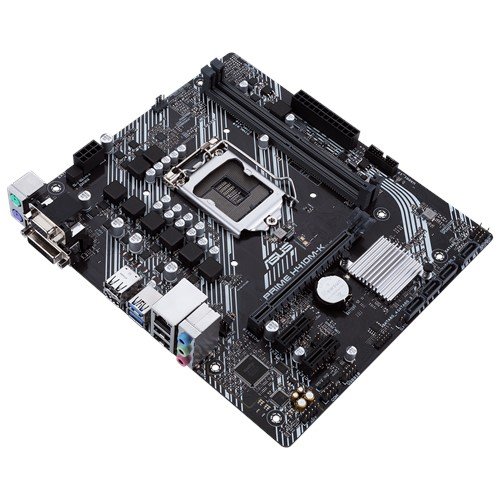

PRIME H410M-K
|
| CPU hỗ trợ |
Intel |
| Chipset |
H410
|
| RAM hỗ trợ |
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz |
| Khe cắm mở rộng |
1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
|
| Ổ cứng hỗ trợ |
4 x SATA 6Gb/s port(s) |
| Cổng kết nối (Internal) |
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector |
| Cổng kết nối (Back Panel) |
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s) |
| LAN / Wireless |
Realtek® RTL8111H |
| Kích cỡ |
mATX Form Factor
8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm ) |
